HPE Data Fabric 6.2 基本安裝
環境描述
Apollo 4530 (ProLiant XL450 Gen9 Server *3)
- OS Red Hat Enterprise Linux release 8.2 (Ootpa)
- 2 * Intel(R) Xeon(R) CPU E5-2660 v4 @ 2.00GHz 14 core
- 8 * DDR4-2400 32GB
- 1 * VK000480GWJPE RI 480G SSD
- 15 * MB6000JVYZD 6TB 12G 7.2K 3.5 SAS
- 1 * X710 for 10GbE
環境配置
檢查CPU與作業系統
uname -m
x86_64
i386, i486, i586, i686 這些都不支援MapR
檢查作業系統版本
cat /etc/redhat-release
Red Hat Enterprise Linux release 8.2 (Ootpa)
網路配置檢查
hostname -f
df-node1.hpe-taiwan-cic.net
檢查每個節點是否可透過FQDN溝通
getent hosts 'df-node1.hpe-taiwan-cic.net'
getent hosts 'df-node2.hpe-taiwan-cic.net'
getent hosts 'df-node3.hpe-taiwan-cic.net'
20.6.0.121 df-node1.hpe-taiwan-cic.net
20.6.0.122 df-node1.hpe-taiwan-cic.net
20.6.0.123 df-node1.hpe-taiwan-cic.net
安裝Installer
調整Syscrtl 配置
vim /etc/sysctl.conf
在sysctl.conf中加入下面兩個選項
vm.swappiness=1
net.ipv4.tcp_retries2=5
重新啟動服務
sysctl -p
Start chronyd service
systemctl start chronyd
Disable & Stop SELINUX service
setenforce 0
sed -i --follow-symlinks 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/sysconfig/selinux
下載MapR Installer
wget https://package.mapr.com/releases/installer/mapr-setup.sh -P /tmp
開始安裝MapR Installer
bash /tmp/mapr-setup.sh
Install required packages?輸入y並按下[Enter]
HPE Ezmeral Data Fabric Distribution Initialization and Update
Copyright 2021 Hewlett Packard Enterprise Development LP., All Rights Reserved
https://www.hpe.com/us/en/software/data-fabric.html
Install required packages? (y/n) [y]: y
Failed to set locale, defaulting to C.UTF-8
warning: /var/cache/dnf/rhel-8-for-x86_64-baseos-rpms-51b3b78d5698246b/packages/python3-setuptools-39.2.0-5.el8.noarch.rpm: Header V3 RSA/SHA256 Signature, key ID fd431d51: NOKEY
Importing GPG key 0xFD431D51:
Userid : "Red Hat, Inc. (release key 2) <security@redhat.com>"
Fingerprint: 567E 347A D004 4ADE 55BA 8A5F 199E 2F91 FD43 1D51
From : /etc/pki/rpm-gpg/RPM-GPG-KEY-redhat-release
Importing GPG key 0xD4082792:
Userid : "Red Hat, Inc. (auxiliary key) <security@redhat.com>"
Fingerprint: 6A6A A7C9 7C88 90AE C6AE BFE2 F76F 66C3 D408 2792
From : /etc/pki/rpm-gpg/RPM-GPG-KEY-redhat-release
Installing installer package dependencies...
Failed to set locale, defaulting to C.UTF-8
Failed to set locale, defaulting to C.UTF-8
Error: Unable to find a match: epel-release
Failed to set locale, defaulting to C.UTF-8
Failed to set locale, defaulting to C.UTF-8
Failed to set locale, defaulting to C.UTF-8
warning: /var/cache/dnf/epel-fafd94c310c51e1e/packages/sshpass-1.06-9.el8.x86_64.rpm: Header V3 RSA/SHA256 Signature, key ID 2f86d6a1: NOKEY
Importing GPG key 0x2F86D6A1:
Userid : "Fedora EPEL (8) <epel@fedoraproject.org>"
Fingerprint: 94E2 79EB 8D8F 25B2 1810 ADF1 21EA 45AB 2F86 D6A1
From : /etc/pki/rpm-gpg/RPM-GPG-KEY-EPEL-8
...Success
Testing for java-11-openjdk-devel or higher...
JDK not found - installing java-11-openjdk-devel...
Failed to set locale, defaulting to C.UTF-8
...Success
Testing connection to http://package.mapr.com/releases/installer...
...Success
輸入相關訊息包含uid, gid, password
Enter [host:]port that cluster nodes connect to this host on [df-node1.hpe-taiwan-cic.net:9443]:
Testing for cluster admin account...
Enter MapR cluster admin name [mapr]: [MapR Admin 預設是mapr] 按[Enter] 下一步
User 'mapr' does not exist. Creating new cluster admin account...
Enter 'mapr' uid [5000]: [預設uid是5000] 按[Enter] 下一步
Enter 'mapr' group name [mapr]: [預設group name是mapr] 按[Enter] 下一步
Enter 'mapr' gid [5000]: [預設gid是5000] 按[Enter] 下一步
Enter 'mapr' password: [輸入mapr的密碼] 按[Enter] 下 一步
Confirm 'mapr' password: [再次輸入mapr的密碼] 按[Enter] 下一步
...Success
Installing installer packages...
Failed to set locale, defaulting to C.UTF-8
Updating Subscription Management repositories.
35 files removed
Failed to set locale, defaulting to C.UTF-8
...Success
To continue installing HPE Ezmeral Data Fabric software, open the following URL in a web browser
If the address 'df-node1.hpe-taiwan-cic.net' is internal and not
accessible from your browser, use the external address mapped to it instead
https://df-node1.hpe-taiwan-cic.net:9443

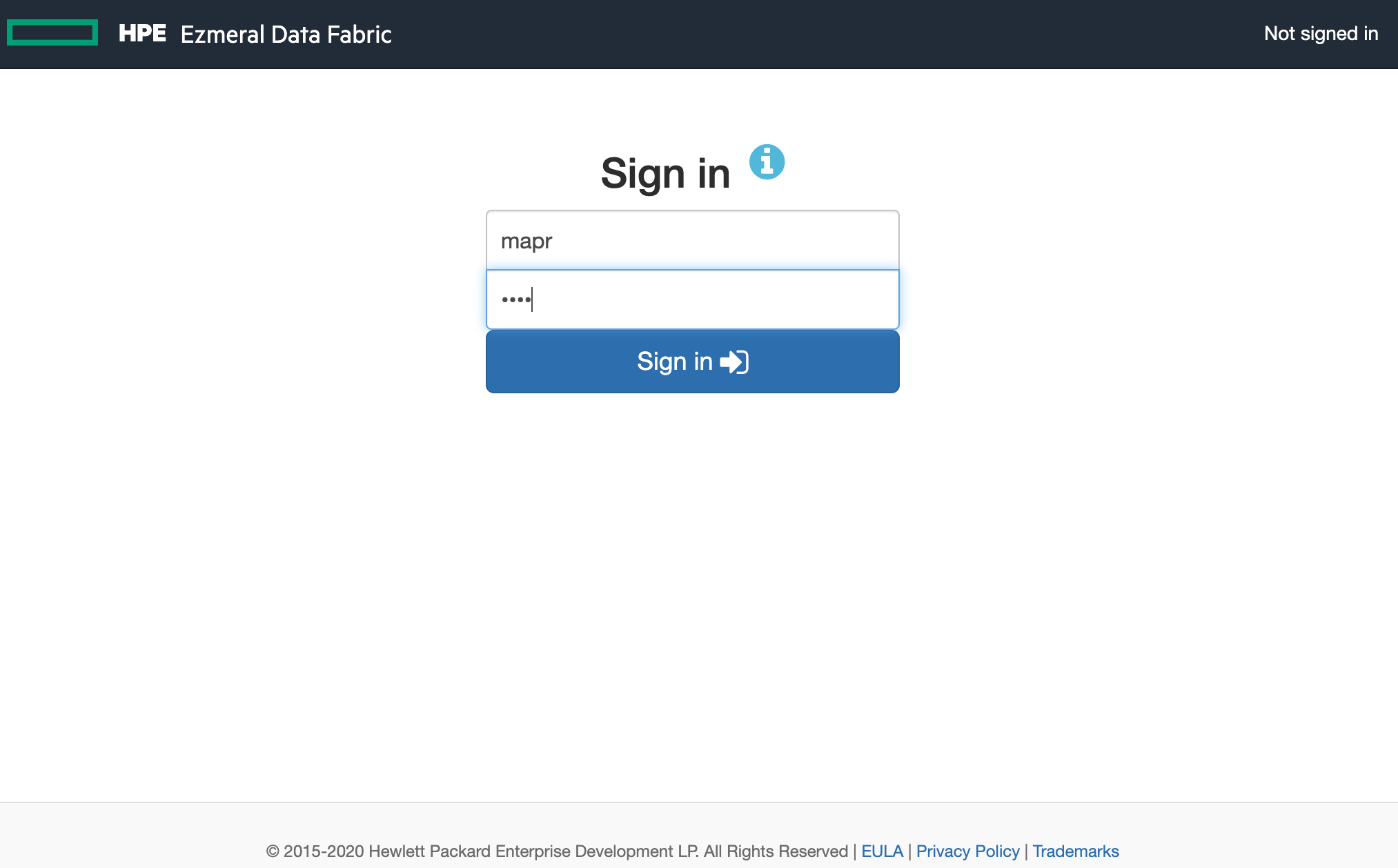

輸入mapr帳號密碼登入https://IP-Address:9443
註冊MapR User 連結
輸入Node hostname
輸入帳號與密碼 這邊使用root 透過ssh
驗證完畢
選擇硬碟
確認Layout
可參考這邊規劃
安裝完成
輸入mapr帳號密碼 https://<IP-Address>:8443
